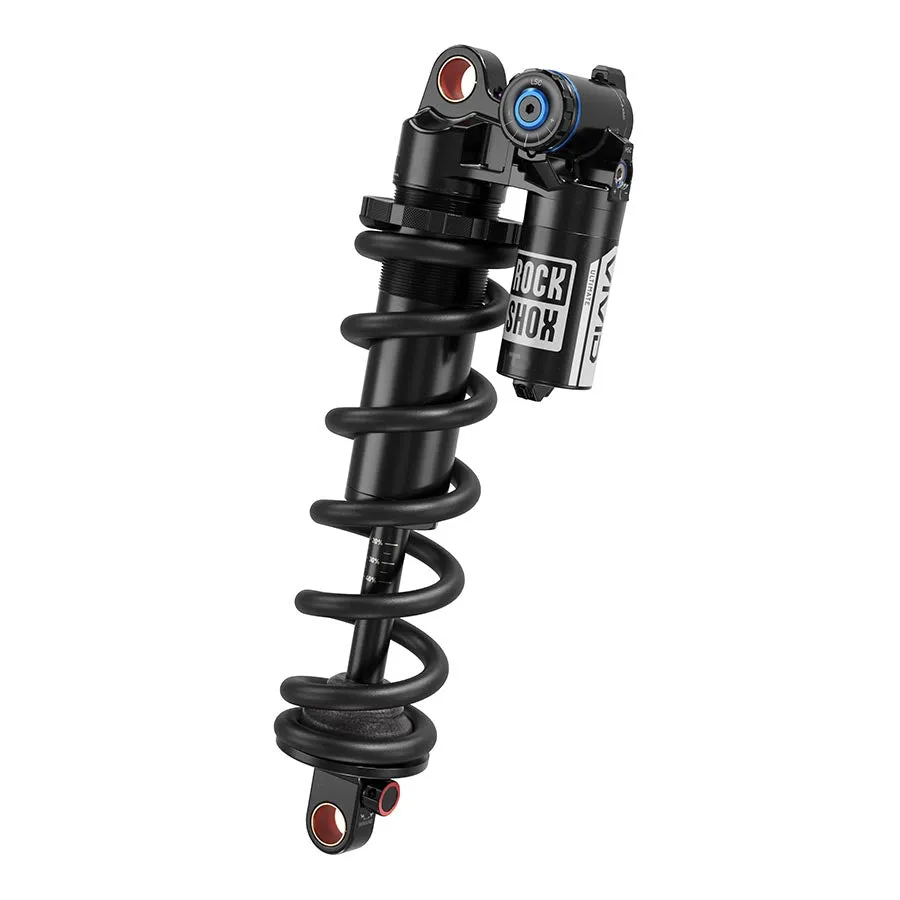

Vivid Coil Ultimate is unmatched in downhill performance and tunability. Easily dial in the perfect ride feel with the TouchDown RC2T position-sensitive damper. TouchDown RC2T damper features sensitivity and suppleness off the top while remaining stable and supportive throughout its travel. Position-sensitive damper offers reliable performance and tunability with energetic responsiveness at every position in the travel. Rebound adjustment, independent High and Low Speed Compression adjustment, and an easy-to-adjust Threshold Lever for added pedaling efficiency. Adjustable Hydraulic Bottom Out has five compression settings at your fingertips to customize the amount of bottom-out resistance in the last 20% of travel. Soft, stroke-specific bottom-out bumper accommodates the range of stroke lengths, allowing for full travel. SRAM Model ID: RS-VIVID COIL-ULTIMATE-C1

• TECH SPECS

Damping Adjustments	External rebound 2 position (open/firm) HS&LS compression Hydraulic Bottom Out
Spring Type	Coil
Eye-To-Eye	230x60
Default Settings	Reb55/Comp30 Adj Hydraulic Bottom Out Lockout 2
Primary Color	Black
Damping	RC2T Adj. Hydraulic Bottom Out
Spring Adjustments	Preload
Body Eyelet	Standard
Shaft Eyelet	Standard
