World Cup proven, specifically designed for the DH and Trail segments with better end stroke control and improved adjustment range

Improved bottom out performance, courtesy of a newly designed bump rubber

Possible to simply adjust stroke with the three 2.5 mm spacers included in the box

External 3 level high-speed compression adjustment

External 16 click low-speed compression adjustment

External 7 click rebound adjustment

Stability mode to reduce suspension movement during less technical climbs

Suitable for the lightweight springs

Mounting hardware sold separately, end eyes are 15mm

486g

• TECH SPECS

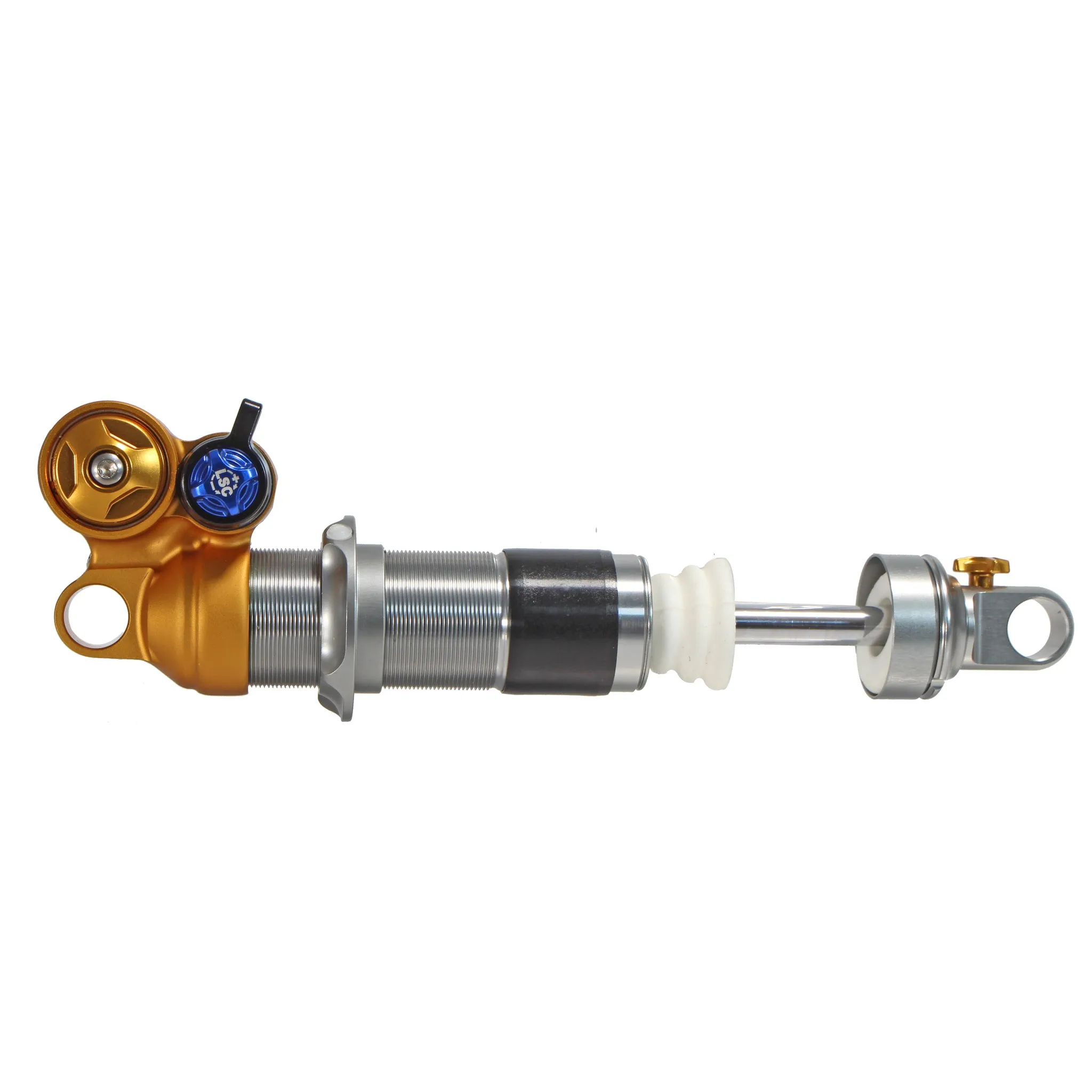

model	TTX22M.2 Coil
stroke	57.5/60/62.5/65mm
eye-eye	230mm
