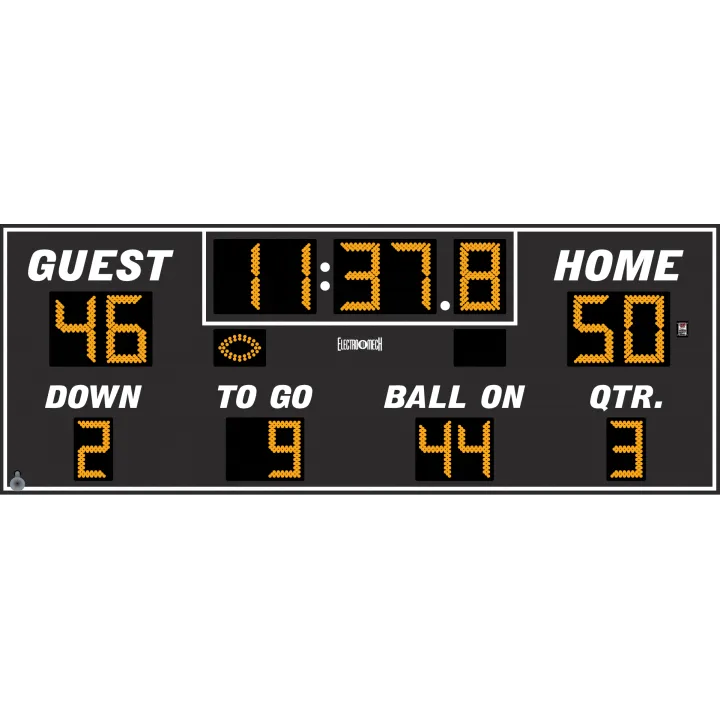

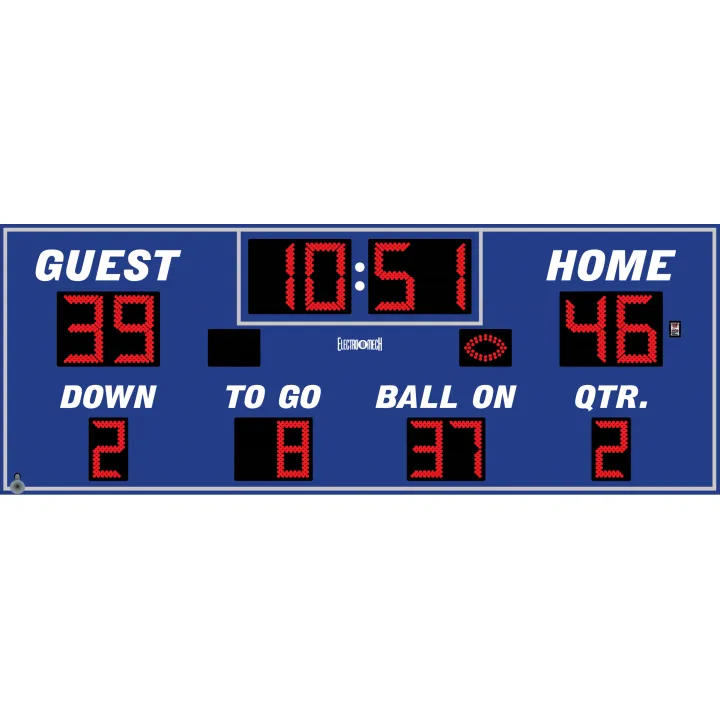

Electro-Mech LX332 Football Scoreboards (16'x6')
Packed into a single, easy-to-install, 16 ft. x 6 ft. cabinet, you get 18-inch tall LEDdigits for Time and Points plus 15-inch tall digits for Down, To Go, Ball On, and Qtr. The 4-Digit Period Clock employed by Model LX3320 shows Minutes and Seconds -- and switches to Seconds and Tenths of Seconds during the final minute of a Quarter. The 5-Digit Period Clock offeredwith Model LX3325 has Tenths of Seconds showing at all times. Even with their smaller size, these Football scoreboards can be upgraded to include Electronic Team Names.
Dimensions:16 ft x 6 ft
Weight:320 lb
Digit Height:18 in, 15 in
Electrical:120 VAC, 2.4 amps
Standard Equipment & Features
Single cabinet design with heavy-duty extruded aluminum framing
Lightweight, rust free, all-aluminum construction
Mounting hardware for permanent installation on posts without the need for on site fabrication
Automotive-grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Choice of amber or red LED displays
LED display circuit boards conformal coated for outdoor use
Internally mounted horn
Simplified 15-key control console
Junction box and patch cable for hardwired installations
Five-year limited warranty
Six selectable brightness levels
Toll-free technical support via phone and online for the life of the product
