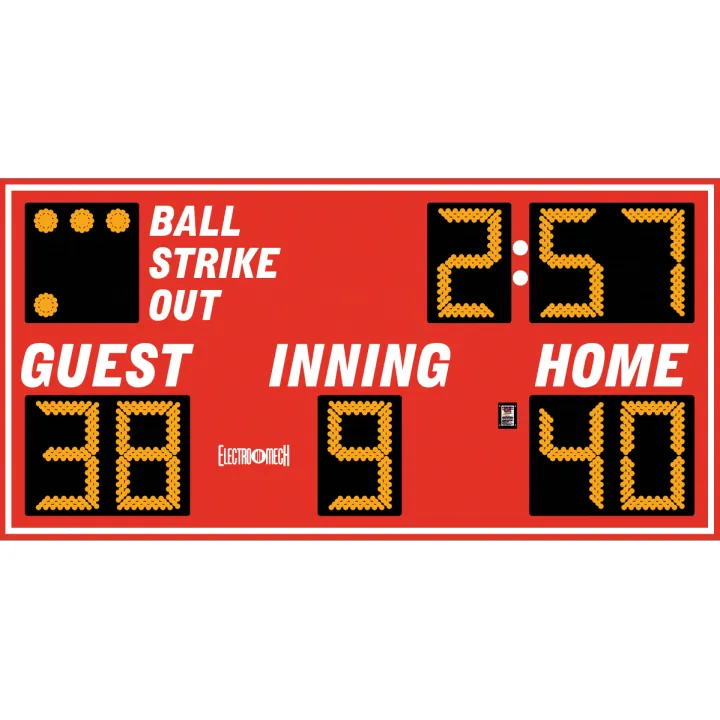

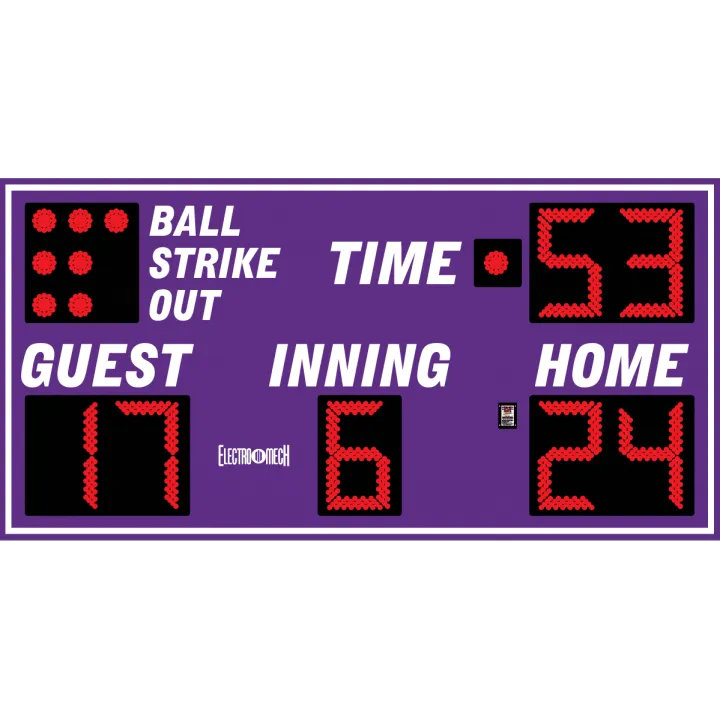

Electro-Mech LX134 Baseball Scoreboards With BSO Bullets
These two baseball/softball scoreboards are based on an extremely popular Electro-Mech design that dates back to the 1980s. The 10 ft. x 5 ft. cabinets include 18-inch tall digits for Scores, Inning, and Time. Ball, Strike, and Out Counts are represented by bullet-style LED clusters. The 2-DigitTimer on LX1340 includes a special bullet indicator that blinks on and off every second while theclock is running. This lets you know whether or not the Timer is counting down without having to wait 60 seconds for the Minutes display to tick down. The 3-digit Timer on Model LX1341 shows Hours and Minutes. The standard control console for these two models is our super simple "MM" design, although you can upgrade to our "MP" console if you need more editing capabilities and other options.
Dimensions:10 ft x 5 ft
Weight:170 lb
Digit Height:18 in
Electrical:120 VAC, 1.4 amps
Standard Equipment & Features
Single cabinet design with heavy-duty extruded aluminum framing
Lightweight, rust free, all-aluminum construction
Mounting hardware for permanent installation on posts without the need for on site fabrication
Automotive-grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Choice of amber or red LED displays
LED display circuit boards conformally coated for outdoor use
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Junction box and patch cable for hardwired installations
Five-year limited warranty
Toll-free technical support via phone and online for the life of the product
